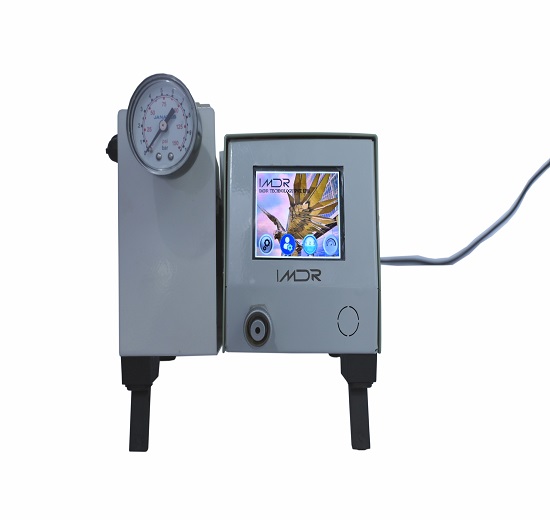

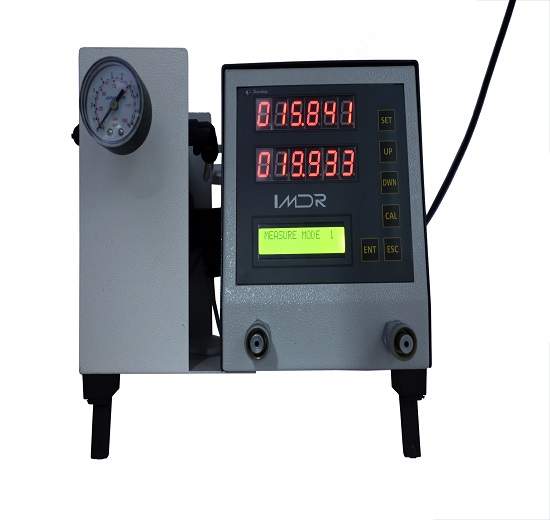

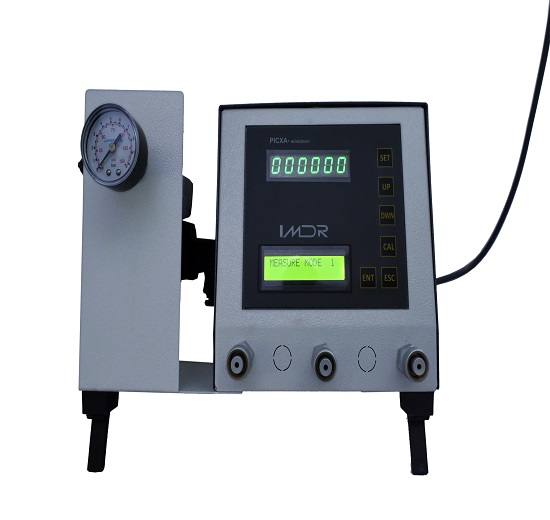

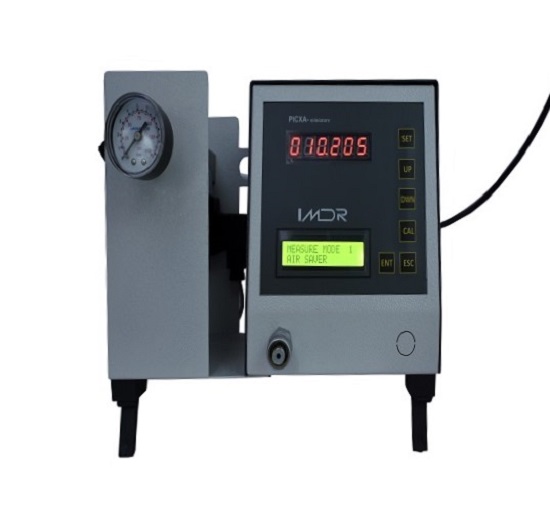

Digital air gauge unit

Works on null balance pressure system And Used to measure accurate pressure of air

---

Name : Digital air gauge unit

Tehnical Information :

Operating Air Pressure.: 2.5 bar

Tri Color 7 Segment or TFT Display ,RS 232 Output

Size of unit is very Compact

Numbers of fixtures are available for different types of components and parameter

Four Standard types of Display unit available: Single Channel /Twin Channel / Three Channel / Four Channel/ Multi Channel

Available in three resolution.:L.C.: 0.0001 mm, Range.: ± 0.020 mm L.C.:0.0005 mm,Range.:± 0.040 mm L.C.: 0.001 mm, Range.: ± 0.080 mm

Measuring Range.:± 400 µM

1A / 2A Digital Air Gauge Unit (Jet – 0.6, 1.0, 2.07 mm)

Depth - 3mm to 6mm

Auto saver feature with settable time.

Attached Filter assembly for more convenience of operator.

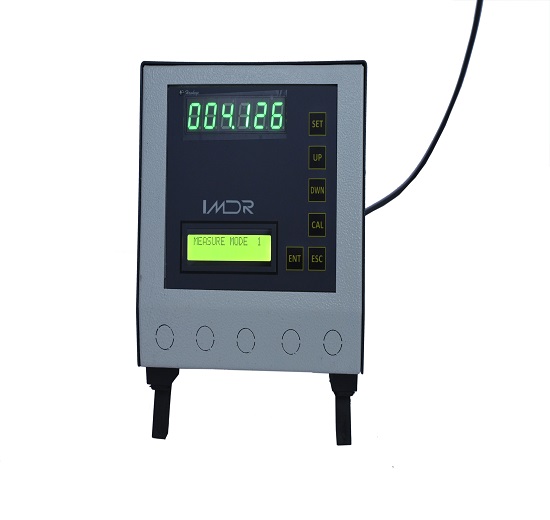

Contact type gauge unit

Pneumatic control system,Air conditioning Pumps,Chemical & Petrochemical,Water treatment

---

Name : Contact type gauge unit

Tehnical Information :

Method of measurement available: PROBE Type.

Tri Color 7 Segment or TFT Display & RS 232 Output.

Selectable range & Least count.

Four Standard types of Display unit - Single Channel / Twin Channel / Three Channel / Four Channel/ Multi Channel

Four Standard types of Display unit available: Single Channel /Twin Channel / Three Channel / Four Channel/ Multi Channel

Available in three resolution.:L.C.: 0.0001 mm, Range.: ± 500 µM L.C.: 0.0005 mm,Range.: ± 2000 µM L.C.: 0.001 mm, Range.: ± 2000 µM

Numbers of fixtures are available for different types of components and parameter.

Unit has very high stability and accuracy.

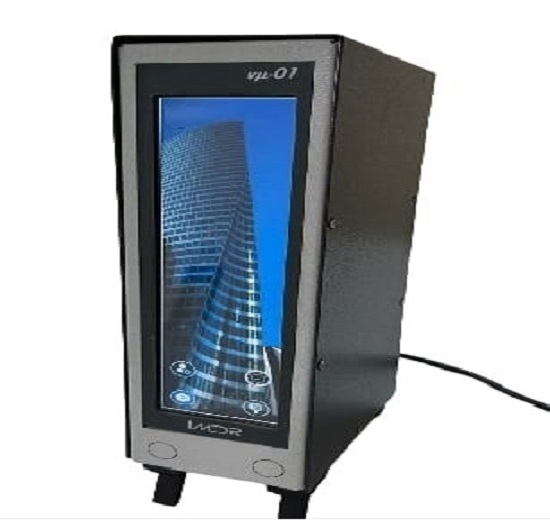

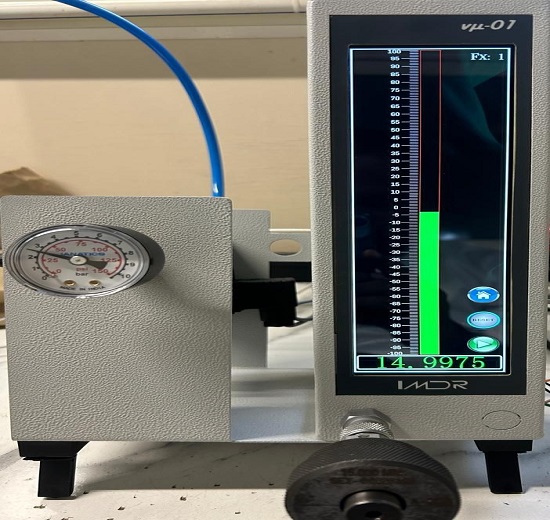

Digital Column Air Gauge Unit

this Air Electronic Column Unit Gauge is used to measure linear and circular dimensions in the form of ovality, run out, O.D. and I.D.

---

Name : Digital Column Air Gauge Unit

Tehnical Information :

Tri Colour Bar Graph on bright and vivid colour TFT Display.

RS 232 Output, Selectable range & Least count

Operating Air Pressure.: 2.5 bar

Available in three resolution.: L.C.: 0.0001 - mm, Range.: ± 0.020 mm, L.C.: 0.0005 mm- Range.: ± 0.040 mm , L.C.: 0.001 mm, Range.: ± 0.080 mm

Numbers of fixtures are available for different types of components and parameter

Auto saver feature with settable time.

Attached Filter assembly for more convenience of operator.

Digital Column contact type Gauge Unit

This instrument is used for measurement of linear dimension and circular dimension in the form of I. D., O. D., flatness, runout, ovality.

---

Name : Digital Column contact type Gauge Unit

Tehnical Information :

Tri Colour Bar Graph on bright and vivid colour TFT Display.

RS 232 Output, Selectable range & Least count

Available in three resolution.:

L.C.: 0.0001 mm, Range.: ± 500 µM L.C.: 0.0005 mm, Range.: ± 2000 µM,

L.C.: 0.001 mm, Range.: ± 2000 µM

Numbers of fixtures are available for different types of components and parameter.

Digital Special Type Gauge Unit, customized product in different field

This instrument is used for measurement of linear dimension and circular dimension in the form of I. D., O. D., flatness, runout, ovality.

---

Name : Digital Special Type Gauge Unit, customized product in different field

Tehnical Information :

Inbuilt USB facility gives error free usb connection, data available directly in exel format with time anddate which is very beneficial for data analysis.

Switch ON calibration and calibration counter gives surety to supervisor for error free calibration.

Manual and auto two modes of data transfer are available but we can also send data with respective of cycle time of component which makes unit more smart.

Auto air saver also a special feature based on manufacturing cycle time of components

Speed of unit match up to 330msec/job.

Sererate and combine relay outputs can given with respctive of displays.

Autotune make unit enable to detect or sense the input which is in use ex 4 input 1 display ie 4 parameter measures in single display respective of priority of input
