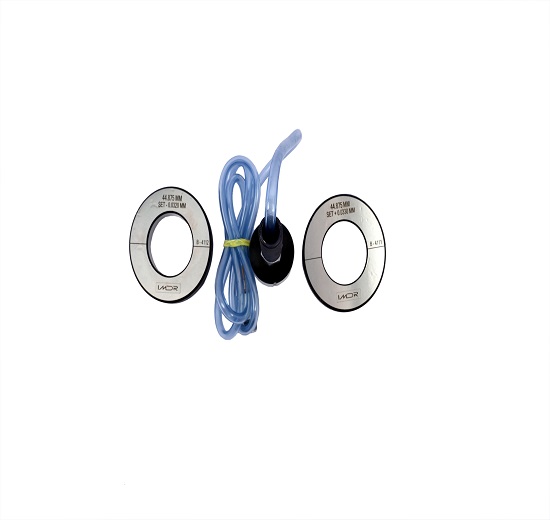

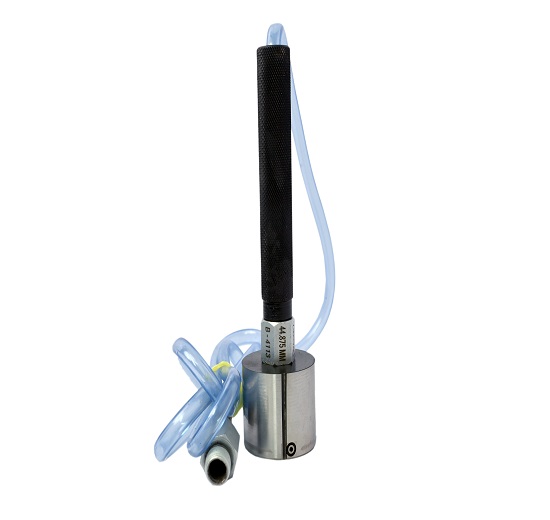

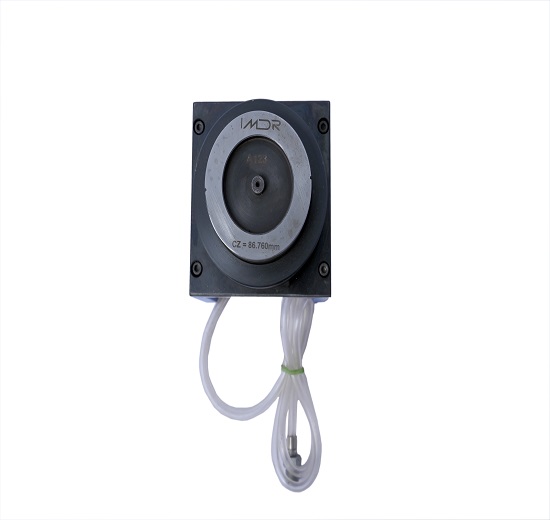

Air Ring Gauges And Setting Plugs

Simple, robust construction and ease of use combined with accuracy, gives the confidence on shop floor

---

Name : Digital Column contact type Gauge Unit

Tehnical Information :

Differential Pressure Indication Features

Easy setting with single control

Self centering gives speed & accuracy in dimensional measurement

No special training needed

Fixed Magnification

Two setting masters ensure correct linear setting

Large Scale diameter (115 mm) for clear visibility & wide measuring range

Available in two tolerance pointers

Required Air Pressue : 4 – 10 Kg / cm3

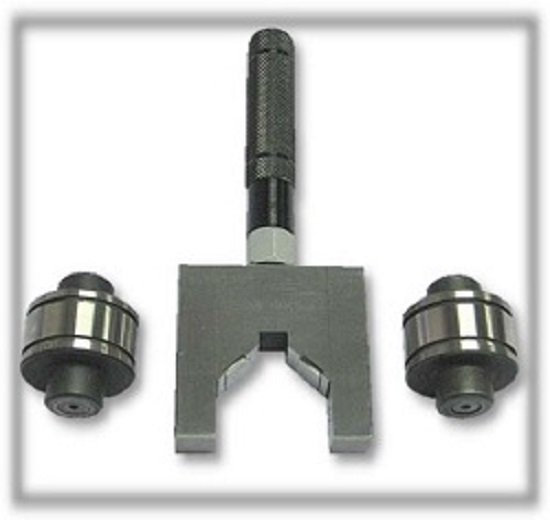

Air Caliper Gauges

Air calipers are ideal for measuring outer diameters of jobs held between the centres on machine or interrupted shafts like Crankshafts

---

Name : Air Caliper Gauges

Tehnical Information :

'V' support for perfect centering and stability. 'V' support with tungsten carbide pads for above diameter 16mm.

Multijet air calipers available for multipoint measurement i.e. to check crowning of crank pins and journal diameters.

Air Caliper gauges - Above Dia. 150 mm available on request.

Accuracy and repeatability in one micron.

Ideal for collared diameters i.e crankshaft pin and journal.

Can be supplied bench mounted for checking small diameters or against specific needs.

OD Range Dia 10 to 225 mm

Air Gauge Unit Module-1A

Plug Gauges

Plain Plug Gauges are used for attribute Inspection of Plain Internal Diameter measurement.

---

Name : Plug Gauges

Tehnical Information :

Basic Dimensions: ISO 286 Part 1 & 2 - 2010, Gauging Practice: DIN 7164 - 1966 & IS 7859-1975.

Diameter 0.5 mm - 10mm are supplied in reversible pin type Design.

Diameter 10 mm - 40 mm are supplied in Taperlock Design.

Diameter 40 mm - 100 mm are supplied in Trilock Design

Diameter 100mm - 300mm are supplied in Plate type design.

Ring Gauges

Setting Ring Gauges are used for Reference standard for setting the equipment/ Gauge.

---

Name : Ring Gauges

Tehnical Information :

DIN 7164 - 1966.

Diameter 1 mm - 300 mm

We can supply Setting Rings from Diameter 4mm to 60mm in Tungstan Carbide, on request.

Each gauge comprises of two parts: a GO gauge and a NO GO gauge. Both parts should be used to check the thread.

Plug gauges are used to check internal threads, whereas ring gauges are used to check external threads.

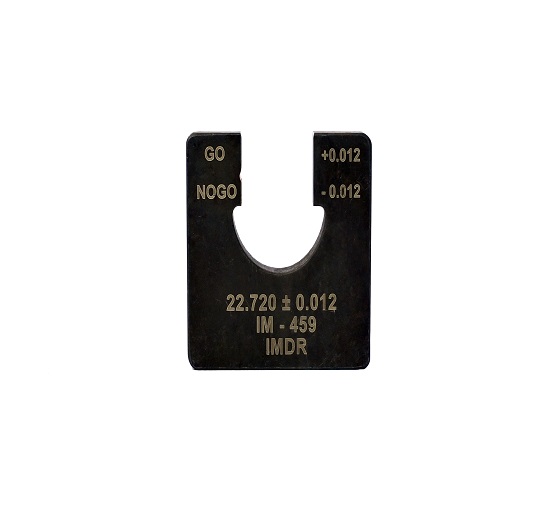

Snap Gauges

PRODUCTS FOR PLAIN EXTERNAL DIAMETER GAUGING - SNAP GAUGES.

---

Name : Snap Gauges

Tehnical Information :

Snap Gauges are used for attribute inspection of external diameter.

Basic Dimensions: ISO 286 Part 1 & 2 - 2010/ IS 919 Part 1 & 2 1993. Gauging Practice: DIN 7164 - 1966 & IS 3455-1971 / IS 7876-1975.

Single end Prograssive Type - Diameter 3mm to 160 mm.

Double Ended (Separate Go & Nogo) - Diameter 3mm to 100 mm.

Double ended I Type Snap Gauge - Diameter 100mm - 300 mm.

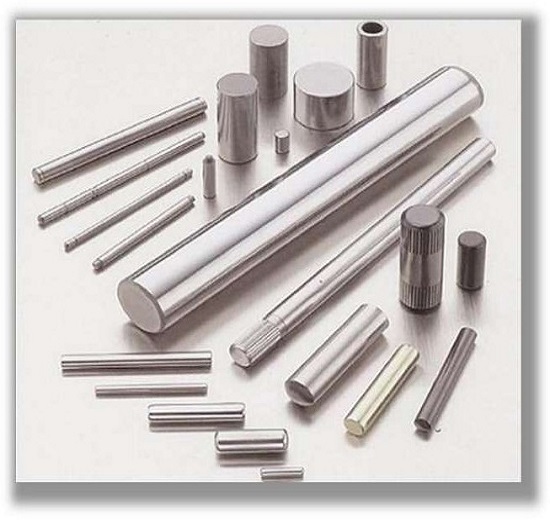

Measuring Pins

used to check bores, tapers, distances, teeth, threads, and general gauging. The pins are made and supplied in a high-quality wooden box or cabinet

---

Name : Measuring Pins

Tehnical Information :

Our range of Plain Measuring Pins provides optimum performance and durability to our clients.

Material: Stainless Steel

Loose Measuring Pins in nominal range of 0.1 to 30 mm in step of 0.01, 0.02, 0.05 mm as per requirement.

Hardened ground measuring pins with in standard steps of 0.01, 0.02, 0.05, 010mm

Measuring Pins of 1.49mm dia will have a length up to 40 mm and for pins with diameter 1.50mm dia, the length will be 50 mm

Pins from dia. 3mm are marked with size.

Tolerances : -/+ 0.002
